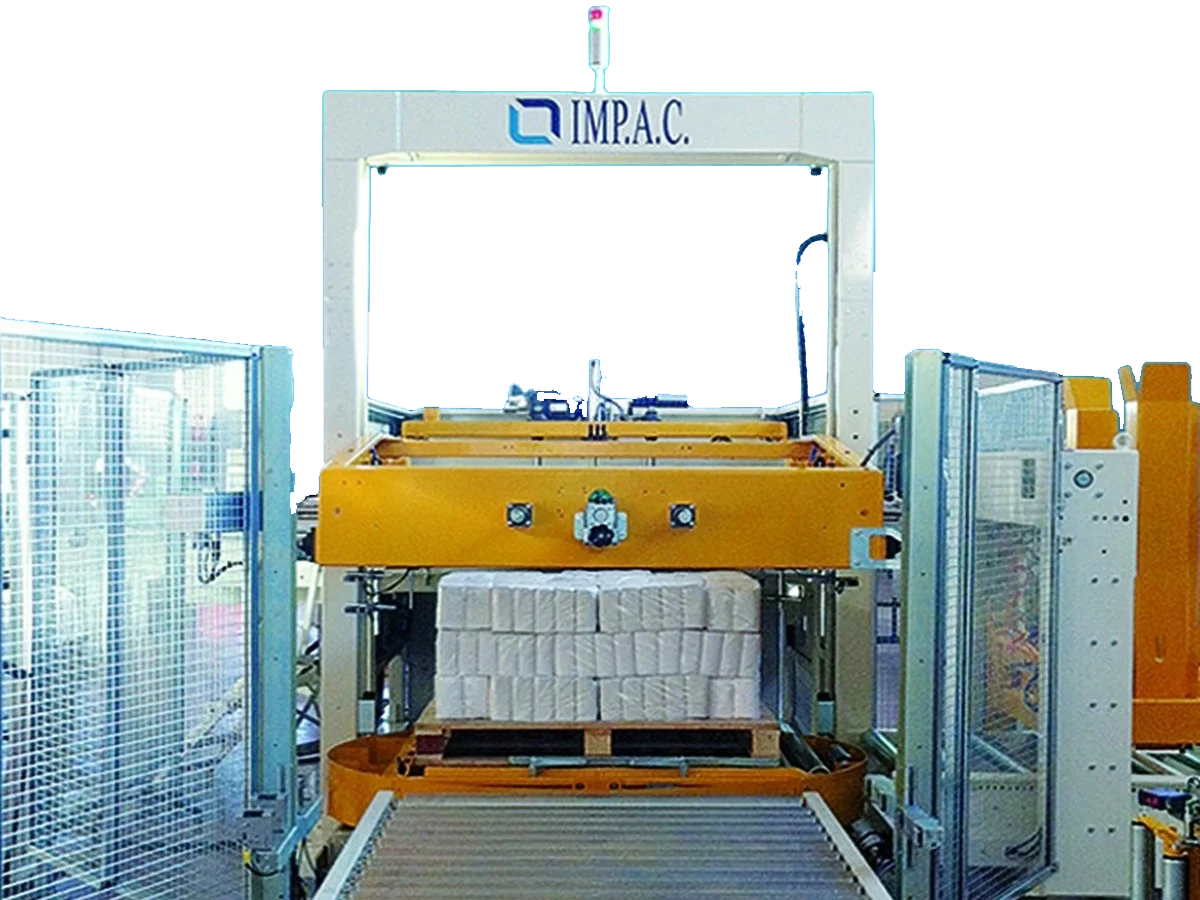

Palletizer/packaging machine for 1 kg vertical bags and bundles with bottom feed
Max Production: 180 bags per minute6 bundles per minute
Bag and bundle dimensions
Max. 180 x 110 x h. 80 mm
Pallet dimensions
Max. 1300 x 1200 x h. 140 mm
Min. 1000 x 800 x h. 100 mm
Layer dimensions
Max. 1400 x 1250 mm
Standard full pallet height
1600 mm
Max. full pallet weight
2000 Kg
Compressed air consumption
100 Nl/min
Installed power
13,5 KW
Operational capacity
6 layers per minute with a limit of 180 bags per minute
Operating pressure
6 bar
Control voltage
24 V
Indicative weight
12000 Kg
Product benefits
__ Operational versatility
It efficiently palletizes both light bags (1-5 kg) and heavier bundles (10-15 kg), adapting to different configurations.
__ High productivity
Designed to handle up to 1700 bags-bundles per hour, with a speed of 180 bags per minute and 15 bundles per minute.
__ Layer optimization
The bags and bundles are compressed, made uniform, and oriented according to the predefined formation, ensuring a stable and precise arrangement.
__ Central opening mechanism
The dedicated platform enables fast and accurate layer placement onto the pallet.
__ Advanced automation
All movements are synchronized through a programmable modular PLC, ensuring smooth operation and adaptability to different needs.
__ Dimensional adaptability
Configurable to handle bags and bundles of different sizes, layer patterns, and number of levels, offering maximum flexibility.
